Tortilla Chips|Nacho Chips processing line
- Model:GG65-3
- Capacity:140-160 kg/h
- Processed Material: Corn flour, rice flour
- Voltage:220v, 60Hz
Features
Nacho Chips processing line is developed by GELGOOG company based on the requirement of domestic and overseas market.This processing line has reached the advanced level in operating performance, products quality and tastes among puffed machine industry. Also this processing line is the best choice for factory to produce crispy rice which has the feature: simplicity of operation, easy to learn and understand. The crispy rice from this production line is taste crispy, have fragrance in mouth after eating that becomes the first snacks choice at consumer’s leisure.

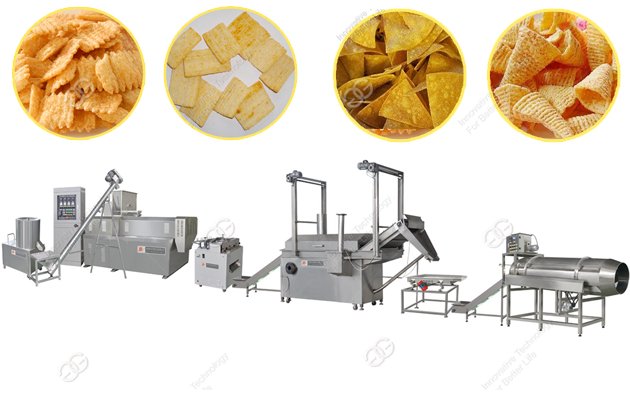

Machine List of Nacho Chips Manufacturing Equipment
Mixer→Screw conveyor→Twin-screw extruder→ Forming machine→Hoister→Fryer→Sifter→Hoister →Roller
Manufacturing Process of Tortilla Chips Production Line
Manufacturing Process of Tortilla Chips Production Line
1. Raw material:Corn flour, rice flour etc.
2. Final product: Tortilla chips,Doritos chips, Nocho chips, Bugles Chips, etc.
3. Capacity:140-160kg/hr
4. Flow chart:Mixer--Screw conveyor--Extruder--Shaping machine--Hoister--Continuous fryer--Sifter--Hoister--Flavoring roller--Cooling conveyor
5. Voltage & Frequency:220V & 60HZ
6. Dimension (m):18*2*4
7. Labor required:2-4

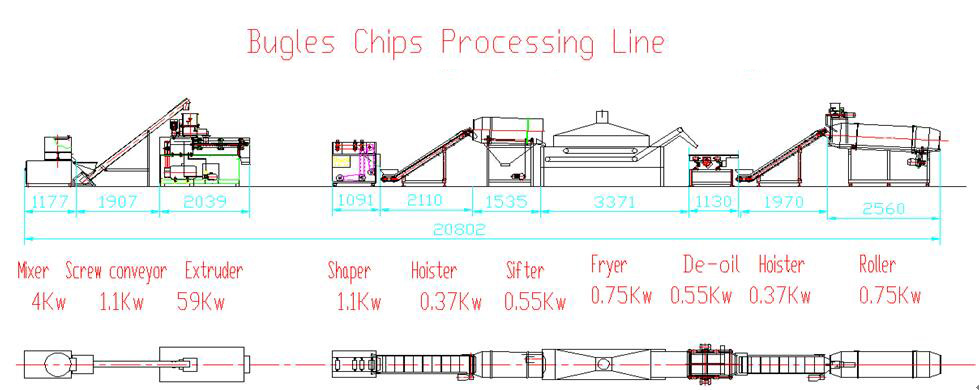

Layout of Tortilla Chips Machine Line:
Layout of Tortilla Chips Machine Line:
Technical Data
| Machine Name |
Qty (Set) |
Dimension (m) |
|
| Mixer | 1 | 1.2*0.5*1.1 | |
| Screw conveyor | 1 | 1.7*0.6*2.2 | |
| Twin-screw Extruder | 1 | 2.48*0.85*1.25 | |
| Shaping machine | 1 | 1.05*0.65*1.25 | |
| Hoister | 1 | 2.0*0.5*1.6 | |
| Continuous fryer | 1 | 4.5*1.3*3.2 | |
| Sifter | 1 | 1.5*0.8*0.6 | |
| Hoister | 1 | 2.0*0.5*1.6 | |
| Flavoring roller | 1 | 2.5*0.85*1.85 | |
| Cooling conveyor | 1 | 5.0*0.7*1.1 | |
