This frozen french fries machine is mainly used to process french fries with fresh potato, with high automation and high efficiency.
Frozen French Fries Machine
Introduction:

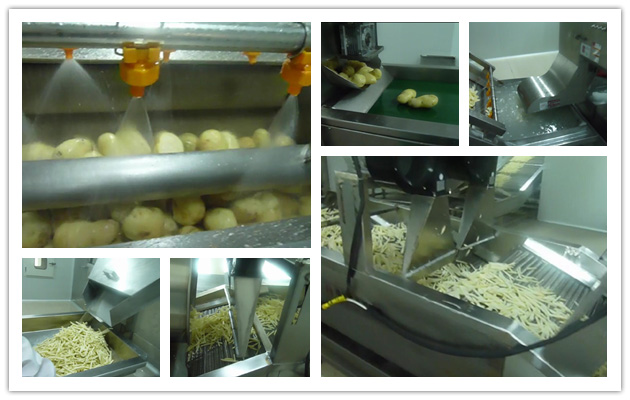

1, Working Process of this plant: Poptato Feeding by Elevator---Cleaning and Peeling---Sorting---Potato Cutting---Rinsing---Blanching---Air Dewatering---Fryer Machine---Vibrate De-oil Machine---Air Drying Machine---Flavoring Machine

2, Cleaning and Peeling Machine: This machine has function of cleaning and peeling together. It is with brush rollers, and also with screw to send out the finished potato. High peeling rate, no damage for potato. The rollers are made of 1010 nylon wire.If working 8 hours per day, it can be used for 4 years. Longer working life. Peeling rate can be more than 95%.

3, For Blanching Machine, it is adopts with conveyor , automatic feeding and automatic discharge.

4, For Fryer Machine, it is continuous type by conveyor transfer. Adopts Oil-Water Separating system to extend the oil working life. It can be made to be Gas Heating, Electric Heating , Gas and Electricity Heating System.
Technical Data Techinal Data
Item Power Dimension
1. Elevator 0.75kw/380v/50Hz 2000*800*1600mm
2. Cleaning and Peeling Machine 4.75kw/380v/50Hz 3100*900*1500mm
3. Sorting Conveyor 0.75kw/380v/50Hz 3000*900*900mm
4. Potato Chips Cutting Machine 1.1kw/380v/50Hz 950*800*950mm
5. Rinsing Machine 5kw/380v/50Hz 5000*1600*900mm
6. Blanching Machine 70kw/380v/50Hz 6000*1600*950mm
7. Air De-water Machine 15kw/380v/50Hz 4000*1200*1400mm
8. Elevator 0.75kw/380v/50hz 1500*800*1300mm
9. Electric Heating Potato Chips Fryer Machine 203kw/380v/50Hz 7000*1200*2600mm
10. Oil Filter Machine 1.5kw/380V 1100*600*950mm
11. Vibrating De-oil Machine 1.5kw/380v/50Hz 1500*1000*1300mm
12. Air Drying Machine 8kw/380v/50Hz 4000*1200*1600mm
13. Elevator 0.75kw/380v/50Hz 2000*800*2200mm
14. Flavoring Machine 1.5kw/380v/50hz 2400*1000*1600mm
